MSD600 Control Cards
General Properties
Hardware Properties
Connection Schema
Spec File
General Properties
MSD600 is a sending card developed by NovaStar. Supporting 2048 x 1152 pixels, MSD600 has HDMI/DVI input – HDMI/external audio input, type B USB control port and 1 light sensor interface.
Hardware Properties
| Resolution Support | 1920×1200@60Hz |
| Pixel Support | 1.3 Million Pixels |
| Current Requirement | 0.6 A |
| Maximum Power Consumption | 3W |
| Ethernet Port | 4 Pieces |
| DVI Port | 1 Piece |
| Audio Input Support | Yes |
| Brightness Sensor Support |
Yes |

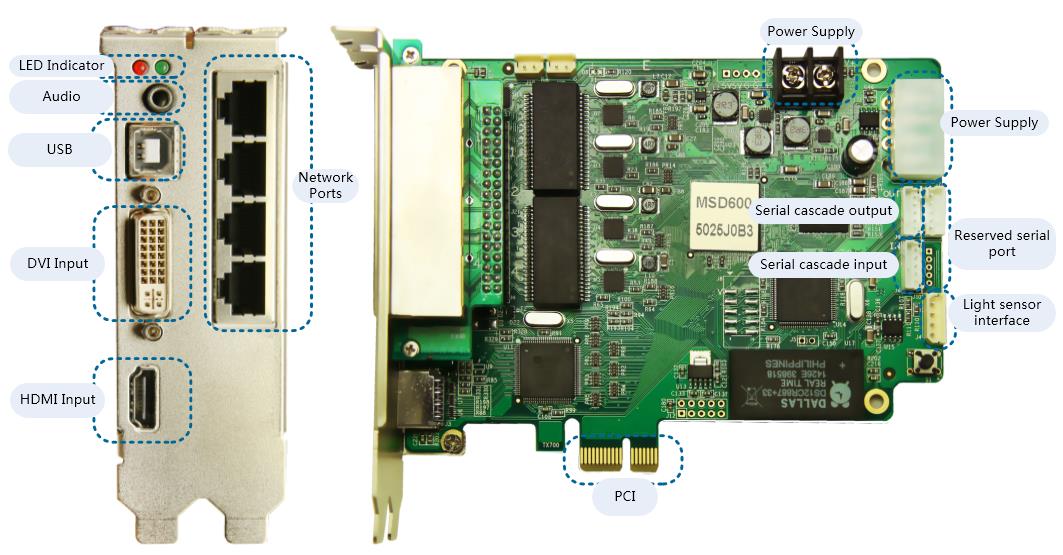

Connection Schema
Spec File
Click for downloading Novastar MSD600 control card spec file.
