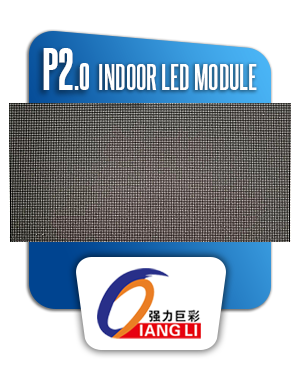

P2 INDOOR LED MODULE
General Properties
Hardware Properties
Connection Schema
Spec File
General Properties
It is a led module with a pixel distance of 2 mm. It offers the best image quality with ultra-high contrast. P2 indoor led panel with 250,000 pixels per square meter is produced with 160mm x 320mm dimensions and SMD 1515 LEDs. It is widely used in in-store applications, meeting and show rooms with its high refresh rate. Qiangli brand P2 indoor led panel has 3840 hz refresh rate.
Hardware Properties
| Operation Plaftorm | Indoor |
| Panel Curtain | 2.0 mm |
| Pixel Density | 250.000 Dots/㎡ |
| LED Lamp | SMD 1515 |
| Size | 320*160* 15 mm |
| Resolution | 160*80 = 12800 Dots |
| Driver Method | Constant Current 1/40 Scan |
| Cabin Pixel Density | 480*320 = 76800 Dots |
| Cabin Space | 0.307 ㎡ |
| Brightness | ≥ 500 cd/㎡ |
| Best View Distance | ≥ 2.0 m |
| Refresh Frequency | ≥ 3840 Hz |
| Display Color | 4398 Billion |
Connection Schema
Spec File
Click for downloading Qiangli P2.0 Indoor LED Module spec file.
