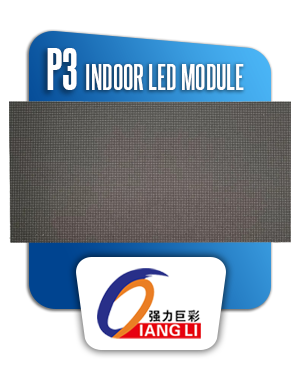

P3 INDOOR LED MODULE
General Properties
Hardware Properties
Connection Schema
Spec File
General Properties
It is a led module with a pixel distance of 3 mm. It offers the best image quality with ultra-high contrast. P3 indoor led panel, which has 85,000 pixels per square meter, is produced with 160mm x 320mm dimensions and SMD 1515 LEDs. It is widely used in in-store applications, meeting and show rooms with its high refresh rate. Qiangli brand P3 indoor led panel has 3840 hz refresh rate.
Hardware Properties
| Operation Plaftorm | Indoor |
| Panel Curtain | 3 mm |
| Pixel Density | 111.111 Dots/ ㎡ |
| LED Lamp | SMD 2020 |
| Size | 160*320* 14 mm |
| Resolution | 52*104 = 5408 Dots |
| Driver Method | Constant Current 1/26 Scan |
| Cabin Pixel Density | 160*320=36864 Dots |
| Cabin Space | 0.332 ㎡ |
| Brightness | ≥ 600 cd/ ㎡ |
| Best View Distance | ≥ 3 m |
| Refresh Frequency | ≥ 1920 Hz |
| Display Color | 4398 Billion |
Connection Schema
Spec File
Click for downloading Qiangli P3 Indoor LED Module spec file.
